Models Available: X1/X2 BBR 100, 200, 300, 400, 500, 600. Featuring a capacity to accommodate 100 to 600
blood bags, these units are designed with an AISI 304-grade stainless steel interior and a non-corrosive
powder-coated CRCA/HDGI sheet metal exterior. With 80-100 mm polyurethane/VIP foam
insulation and CFC & HCFC-free refrigerants, they ensure high performance while being environmentally

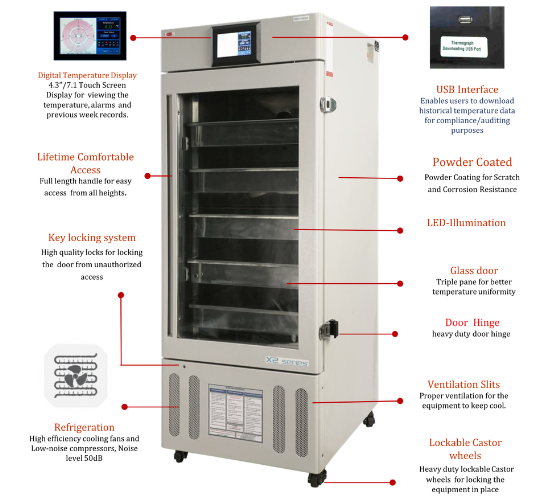

responsible. The microprocessor-based control system with a 4.3/7.1″ touch LCD offers precision,
complemented by battery-supported display and alarms for 12–24 hours. Maintaining a temperature range
of 4°C ± 2°C (2°C to 6°C) with an accuracy of ±0.1°C, these models operate reliably in ambient temperatures up
to +45°C. Additional highlights include SS 304 perforated sliding trays, triple/double pane heated glass
doors with magnetic gaskets, automatic defrosting, and USB data output. Enhanced features such as dual
safety controllers, visual and audio alerts, password-protected settings, heavy-duty lockable castor
wheels, and optional upgrades like RFID/fingerprint locks, SMS alerts, and a barcode reader make these
units highly advanced and user-friendly.
  • Operating temperature range from -45°C to -25°C with ±0.5°C accuracy at -40°C for reliable sample preservation.
  • Microprocessor-based controller with 4.3”/7.1” LCD touch screen for monitoring temperature, door status, and compressor activity.
  • Interior constructed from AISI 304 stainless steel and exterior made of powder-coated CRCA/HDGI sheet metal for enhanced durability.
  • Up to 155 mm Polyurethane/VIP foam insulation with a triple-layer silicone gasket door to minimize cold loss and improve energy efficiency.
  • Enhanced security with key lock, padlock provision, and optional RFID/fingerprint access.
  • Inkless paperless graphical chart recorder with visual and audible alarms for temperature deviation and power failure alerts.
  • Dual-compressor cascade cooling system with CFC & HCFC-free eco-friendly refrigerants and low-noise operation.
  • Heavy-duty lockable castor wheels for easy mobility, with optional SMS alerts and central monitoring ports.
  • Operates on 220–240 V, 50 Hz, single-phase AC power supply for versatile installation.
